Declaration:

PROCEDURE   Add3DPt

(   pX :REAL;     pY :REAL;     pZ :REAL ) ;

Description:

Procedure Add3DPt adds a vertex into a newly created 3D polygon.

Calls to Add3DPt should be made between calls to BeginPoly3D, which initiates polygon creation, and EndPoly3D, which terminates polygon creation. A minimum of two vertices must be created to define a valid 3D polygon object, and calculations may be performed within the BeginPoly3D-EndPoly3D structure, providing additional options for vertex generation.

Parameters:

p	Location of 3D vertex.

Example:

BeginPoly3D;
     Add3DPt(0,0,0);
     Add3DPt(2,0,0);
     Add3DPt(2,2,0);
     Add3DPt(1,3,0);
     Add3DPt(0,2,0);
     Add3DPt(0,0,0);
EndPoly3D;

See Also:

BeginPoly3D   EndPoly3D

Declaration:

PROCEDURE   AddVertex3D

(   objectHd :HANDLE;     pX :REAL;     pY :REAL;     pZ :REAL ) ;

Description:

Procedure AddVertex3D adds a 3D vertex to the referenced 3D polygon object.

Parameters:

objectHd	Handle to object.
p	Location of 3D vertex point.

See Also:

Add3DPt

Declaration:

PROCEDURE   BeginMesh

;

Description:

Procedure BeginMesh begins the efinition of a 3D mesh object in Vectorworks. Any 3D point or planar object call after BeginMesh will be included in the mesh object.

A mesh object allows the user to select and manipulate each vertex within its wire-frame model.

Example:

BeginMesh;
ClosePoly;
PenSize(1);
PenPat(2);
FillPat(0);
Poly3D(0',0',4'-0",4'-0",0',4'-0",4'-0",-4'-0",4'-0",0',-4'-0",4'-0");
Smooth(0);
Poly3D(0',0',0',4'-0",0',0',4'-0",-4'-0",0',0',-4'-0",0');
Smooth(0);
Poly3D(0',-4'-0",0',0',-4'-0",4'-0",0',0',4'-0",0',0',0');
Poly3D(4'-0",-4'-0",0',4'-0",-4'-0",4'-0",0',-4'-0",4'-0",0',-4'-0",0');
Poly3D(4'-0",0',0',4'-0",0',4'-0",4'-0",-4'-0",4'-0",4'-0",-4'-0",0');
Poly3D(0',0',0',0',0',4'-0",4'-0",0',4'-0",4'-0",0',0');
EndMesh;

Declaration:

PROCEDURE   BeginMXtrd

(   startDistance :REAL;     endDistance :REAL ) ;

Description:

Procedure BeginMXtrd creates a multiple extrude object in a Vectorworks document. BeginMXtrd uses 2D object creation procedure calls to define the "template" for the object.

You should call EndMXtrd after the object creation procedures to complete the definition and generate the object in the document.

A multiple extrude object is a 3D object created from three or more 2D objects, which are used as defining shapes for the extruded object.

Parameters:

startDistance	Start distance from document ground plane.
endDistance	End distance from document ground plane.

Example:

BeginMXtrd(0',1 363/512");
  Rect(-125/128",1 113/512",375/512",375/512");
  Rect(-25/32",1 113/512",275/512",375/512");
  Rect(-75/128",1 113/512",325/1024",375/512");
  Locus(-275/2048",125/128");
  Rect(-75/128",1 113/512",325/1024",375/512");
  Rect(-25/32",1 113/512",275/512",375/512");
  Rect(-125/128",1 113/512",375/512",375/512");
EndMXtrd;

Declaration:

PROCEDURE   BeginPoly3D

;

Description:

Procedure BeginPoly3D creates a 3D polygon in the Vectorworks document. This procedure is used with Add3DPt and EndPoly3D to create 3D polygons. Any calls to the Add3DPt procedure after BeginPoly3D will be included in the 3D polygon.

Example:

BeginPoly3D;
  Add3DPt(0,0,0);
  Add3DPt(2,0,0);
  Add3DPt(2,2,0);
  Add3DPt(1,3,0);
  Add3DPt(0,2,0);
  Add3DPt(0,0,0);
EndPoly3D;

See Also:

Add3DPt   EndPoly3D

Declaration:

PROCEDURE   BeginSweep

(   startAngle :REAL;     arcAngle :REAL;     incAngle :REAL;     PitchDistance :REAL ) ;

Description:

Procedure BeginSweep creates a three-dimensional sweep object in the Vectorworks document. A sweep object is a two-dimensional template object which has been rotated about a specified point to create a 3D object. For example, a circle of radius 1" that is swept about a point 2" to the right of the circles center wil create a sweep object resembling a donut, also known as a torus.

The sweep increment may also be thought of as the spacing between the duplication of radial sweep mesh lines. The "pitch", or vertical distance, is the distance that the sweep object will travel for every 360° of rotation. In sweep objects, the 2D template object may also be translated as it rotates, resulting in a "corkscrew" effect. The vertical movement is determined by the following equation: vertical movement = pitch * ArcAngle/360.

2D Object "Template" for Sweep

Sweep Object

Parameters:

startAngle	Starting angle of the sweep.
arcAngle	Angle of sweep.
incAngle	Increment of sweep.
PitchDistance	Pitch (translation distance) of sweep.

Example:

BeginSweep(#0d,#360d,#10d,0');
  Poly(3 1/4",-1/2",
       3 1/4",-1",
       2 3/4",-1",
       2 1/4",-1/2",
       2 1/4",1",
       1 3/4",1 1/2",
       -1 3/4",1 1/2",
       -2 1/4",1",
       -2 1/4",-1/2",
       -2 3/4",-1",
       -3 1/4",-1",
       -3 1/4",-1/2",
       -2 3/4",0",
       -2 3/4",1 1/2",
       -2 1/4",2",
       2 1/4",2",
       2 3/4",1 1/2",
       2 3/4",0");
EndSweep;

Declaration:

PROCEDURE   BeginXtrd

(   startDistance :REAL;     endDistance :REAL ) ;

Description:

Procedure BeginXtrd creates a 3D extrude object in a Vectorworks document. BeginXtrd uses 2D object creation procedure calls to define the "template" for the object.

You should call EndXtrd after the object creation procedures to complete the definition and generate the extrude object in the document.

Parameters:

startDistance	Start distance from document ground plane.
endDistance	End distance from document ground plane.

Example:

BeginXtrd(0',4');
Rect(-1 61/64",125/128",-1 119/256",-375/512");
Rect(-1 113/512",1 113/512",-375/512",-125/256");
Rect(-125/256",125/128",0',-375/512");
Rect(125/128",125/128",1 119/256",-375/512");
Rect(1 25/512",1 113/512",375/512",-125/256");
Rect(1 363/512",1 113/512",2 101/512",-125/256");
EndXtrd;
{creates an extrude using the defined rectangles, each extruded to a depth of 4'}

Declaration:

FUNCTION   Centroid3D

(   object :HANDLE;   VAR  xCG :REAL;   VAR  yCG :REAL;   VAR  zCG :REAL ) :BOOLEAN ;

Description:

Returns the center of gravity of a 3D object. The function returns TRUE if the values were found.

Parameters:

object	The objectt from whci to calculate the center of gravity
xCG	The x component of the center of gravity.
yCG	The y component of the center of gravity.
zCG	The z component of the center of gravity.

Result:

Returns true if the function succeeds.

Declaration:

FUNCTION   ConvertTo3DPolys

( original:HANDLE ) :HANDLE ;

Description:

Converts an object to 3D polygons. This function successfully converts rectangles, circles, arcs, polylines, polygons, ovals, lines, straight walls, curved walls, and roofs.

Parameters:

original

Handle to the original object.

Example:

PROCEDURE Example;
VAR
	h :HANDLE;
BEGIN
	h := ConvertTo3DPolys(FSActLayer);
END;
RUN(Example);

Declaration:

FUNCTION   CreateContourCurves

(   inSourceObject :HANDLE;     delta :REAL;     ptOnPlaneX :REAL;     ptOnPlaneY :REAL;     ptOnPlaneZ :REAL;     normalX :REAL;     normalY :REAL;     normalZ :REAL ) :HANDLE ;

Description:

Creates contour curves for a solid object given the delta, point on plane and plane normal. If delta is 0, only 1 curve is created, where the specified plane intersects the selected solid.

Parameters:

inSourceObject	Handle to a solid object
delta	Distance between contours
ptOnPlane	Point on plane used to define contours
normal	Plane's normal vector

Result:

Returns true if the function succeeds.

Example:

PROCEDURE Example;
VAR
	inSourceObject :HANDLE;
	delta :REAL;
	ptOnPlaneX, ptOnPlaneY, ptOnPlaneZ :REAL;
	normalX, normalY, normalZ :REAL;
	h :HANDLE;
BEGIN
	inSourceObject := FSActLayer;
	delta := 0; {number of slices}
	ptOnPlaneX := 0;
	ptOnPlaneY := 0;
	ptOnPlaneZ := 610;
	normalX := 0;
	normalY := 0;
	normalZ := 1;
	h := CreateContourCurves(inSourceObject, delta, ptOnPlaneX, ptOnPlaneY, ptOnPlaneZ, normalX, normalY, normalZ);
END;
RUN(Example);

Declaration:

FUNCTION   CreateExtrudeAlongPath

(   pathHandle :HANDLE;     profileHandle :HANDLE ) :HANDLE ;

Description:

Creates a new path extrude object in the document. The profile defines the shape of the cross-section, and is extruded along the path to generate the resulting object.

The path argument must be a handle to a NURBS Curve object (type 111). The profile argument must be a handle to an object of one of the following types: NURBS Curve, Polygon, Polyline, Arc, Rectangle, Rounded Rectangle, Line, Oval.

Parameters:

pathHandle	Handle to the path object.
profileHandle	Handle to the profile object.

Result:

Returns a HANDLE to the new path extrude if successful, otherwise returns NIL.

Declaration:

FUNCTION   CreateImageProp

(   propName :STRING;     textureRef :LONGINT;     height :REAL;     width :REAL;     enforceImageAspectRatio :BOOLEAN;     crossedPlanes :BOOLEAN;     createPlugin :BOOLEAN;     autoRotate :BOOLEAN;     createSymbol :BOOLEAN ) :HANDLE ;

Description:

Create an image prop from the options specified.

The texture resource and optional symbol created will use names derived from the propName parameter. If those names are being used then unique names will be assigned. If enforceImageAspectRatio is true, depending on deriveWidthFromHeight the prop width/height will be derived from the prop height/width and the texture's image aspect ratio. Otherwise the height and width can be set independently of the texture's image aspect ratio.

Declaration:

FUNCTION   CreateTaperedExtrude

(   profileH :HANDLE;     angle :REAL;     height :REAL ) :HANDLE ;

Description:

Creates a new tapered extrude object in the document.

Parameters:

profileH	Handle to object defining profile geometry.
angle	Taper angle of extrude (in degrees).
height	Height of extrude.

Result:

Returns a HANDLE to the new tapered extrude if successful, otherwise returns NIL.

Declaration:

PROCEDURE   EndMesh

;

Description:

Procedure EndMesh completes the definition of a mesh object within a Vectorworks document. On calling EndMesh, the mesh is created in the document from the preceding object creation calls.

It is recommended to call ResetOrientation3D after 3D object creations in order to ensure that the new 3D objects will draw properly.

Example:

BeginMesh;
ClosePoly;
PenSize(1);
PenPat(2);
FillPat(0);
Poly3D(0',0',4'-0",4'-0",0',4'-0",4'-0",-4'-0",4'-0",0',-4'-0",4'-0");
Smooth(0);
Poly3D(0',0',0',4'-0",0',0',4'-0",-4'-0",0',0',-4'-0",0');
Smooth(0);
Poly3D(0',-4'-0",0',0',-4'-0",4'-0",0',0',4'-0",0',0',0');
Poly3D(4'-0",-4'-0",0',4'-0",-4'-0",4'-0",0',-4'-0",4'-0",0',-4'-0",0');
Poly3D(4'-0",0',0',4'-0",0',4'-0",4'-0",-4'-0",4'-0",4'-0",-4'-0",0');
Poly3D(0',0',0',0',0',4'-0",4'-0",0',4'-0",4'-0",0',0');
EndMesh;

Declaration:

PROCEDURE   EndMXtrd

;

Description:

Procedure EndMXtrd completes the definition of a multiple extrude object within a Vectorworks document. On calling EndMXtrd, the object is created in the document from the preceding object creation calls.

It is recommended to call ResetOrientation3D after 3D object creations in order to ensure that the new 3D objects will draw properly.

Example:

BeginMXtrd(0',1 363/512");
  Rect(-125/128",1 113/512",375/512",375/512");
  Rect(-25/32",1 113/512",275/512",375/512");
  Rect(-75/128",1 113/512",325/1024",375/512");
  Locus(-275/2048",125/128");
  Rect(-75/128",1 113/512",325/1024",375/512");
  Rect(-25/32",1 113/512",275/512",375/512");
  Rect(-125/128",1 113/512",375/512",375/512");
EndMXtrd;

Declaration:

PROCEDURE   EndPoly3D

;

Description:

Procedure EndPoly3D completes the definition of a multiple extrude object within a Vectorworks document. On calling EndPoly3D, the object is created in the document from the preceding object creation calls.

It is recommended to call ResetOrientation3D after 3D object creations in order to ensure that the new 3D objects will draw properly.

Example:

BeginPoly3D;
     Add3DPt(0,0,0);
     Add3DPt(2,0,0);
     Add3DPt(2,2,0);
     Add3DPt(1,3,0);
     Add3DPt(0,2,0);
     Add3DPt(0,0,0);
EndPoly3D;

See Also:

BeginPoly3D   Add3DPt

Declaration:

PROCEDURE   EndSweep

;

Description:

Procedure EndSweep completes the definition of a sweep object within a Vectorworks document. On calling EndSweep, the object is created in the document from the preceding object creation calls.

It is recommended to call ResetOrientation3D after 3D object creations in order to ensure that the new 3D objects will draw properly.

Example:

BeginSweep(#0°,#360°,#10°,0');
  Poly(3 1/4",-1/2",3 1/4",-1",2 3/4",-1",
  2 1/4",-1/2",2 1/4",1",1 3/4",1 1/2",
  -1 3/4",1 1/2",-2 1/4",1",-2 1/4",-1/2",
  -2 3/4",-1",-3 1/4",-1",-3 1/4",-1/2",
  -2 3/4",0",-2 3/4",1 1/2",-2 1/4",2",
  2 1/4",2",2 3/4",1 1/2",2 3/4",0");
EndSweep;

Declaration:

PROCEDURE   EndXtrd

;

Description:

Procedure EndXtrd completes the definition of an extrude object within a Vectorworks document. On calling EndXtrd, the object is created in the document from the preceding object creation calls.

It is recommended to call ResetOrientation3D after 3D object creations in order to ensure that the new 3D objects will draw properly.

Example:

BeginXtrd(0',4');
 Rect(-1 61/64",125/128",-1 119/256",-375/512");
 Rect(-1 113/512",1 113/512",-375/512",-125/256");
 Rect(-125/256",125/128",0',-375/512");
 Rect(125/128",125/128",1 119/256",-375/512");
 Rect(1 25/512",1 113/512",375/512",-125/256");
 Rect(1 363/512",1 113/512",2 101/512",-125/256");
EndXtrd;

Declaration:

PROCEDURE   Get3DCntr

(   h :HANDLE;   VAR  pX :REAL;   VAR  pY :REAL;   VAR  zValue :REAL ) ;

Description:

Procedure Get3DCntr returns the three-dimensional center point of the referenced 3D object.

Parameters:

h	Handle to object.
p	Returns coordinates of object center point.
zValue	Returns elevation of object center point.

Example:

PROCEDURE IncreaseExtr;
	{This script increases extruded objects in the selection by a user requested value.}
	{by Paolo, on the VectorScript bulletin board}
VAR
	oggetto :HANDLE;
	increaseValue :REAL;

FUNCTION Increase(h :HANDLE) :BOOLEAN;
VAR
	height, width, depth :REAL;
	xRot, yRot, zRot :REAL;
	p0X, p0Y, p0Z :REAL;
	p1X, p1Y, p1Z :REAL;
	result, isMirroredXY :BOOLEAN;
BEGIN
	{check if the obj is an extrusion}
	if (GetType(h) = 24) THEN BEGIN
		result := Get3DOrientation(h, xRot, yRot, zRot, isMirroredXY);
		Get3DCntr(h, p0X, p0Y, p0Z);

		SetRot3D(h, 0, 0, 0, 0, 0, 0);
		{here depth = extrusion value}
		Get3DInfo(h, height, width, depth);

		{I increase the depth}
		SET3DInfo(h, height, width, depth + increaseValue);

		SET3DRot(h, xRot, yRot, zRot , 0,0,0);

		Get3DCntr(h, p1X, p1Y, p1Z);

		{move of the misplacement p0-p1}
		Move3DObj(h, p0X-p1X, p0Y-p1Y, p0Z-p1Z);
		Get3DCntr(h, p1X, p1Y, p1Z);
	END;
	increase := FALSE;
END;

BEGIN
	{ask the value to increase}
	increaseValue := RealDialog('Increase extrusions in the selection of this value','10');
	{apply to the selected set of objects}
	ForEachObjectInList(increase, 2, 0, oggetto);
END;
RUN(IncreaseExtr);

Declaration:

PROCEDURE   Get3DInfo

(   h :HANDLE;   VAR  height :REAL;   VAR  width :REAL;   VAR  depth :REAL ) ;

Description:

Procedure Get3DInfo returns the height, width and depth values of the referenced 3D object.

Parameters:

h	Handle to 3D object.
height	Height of object.
width	Width of object.
depth	Depth of object.

Example:

PROCEDURE GetBBox3D(h :HANDLE; VAR x1, y1, z1, x2, y2, z2 :REAL);
VAR
	garb_r, z_span, z_center :REAL;
BEGIN
	GetBBox(h, x1, y1, x2, y2);
	Get3DInfo(h, garb_r, garb_r, z_span);
	Get3DCntr(h, garb_r, garb_r, z_center);
	z1 := z_center - (z_span / 2);
	z2 := z_center + (z_span / 2);
END;

Declaration:

FUNCTION   Get3DOrientation

(   h :HANDLE;   VAR  xRot :REAL;   VAR  yRot :REAL;   VAR  zRot :REAL;   VAR  isMirroredXY :BOOLEAN ) :BOOLEAN ;

Description:

Function Get3DOrientation returns the 3D orientation of the referenced object.

If the object is mirrored, a reflection across the X-Y plane must be applied before rotating by the angles above in order to reproduce the object's orientation.

Parameters:

h	Handle to 3D object.
xRot	Returns X rotation value.
yRot	Returns Y rotation value.
zRot	Returns Z rotation value.
isMirroredXY	Returns mirror status of object.

Result:

Get3DOrientation returns TRUE if a valid 3D object was passed to the procedure.

Declaration:

PROCEDURE   GetLocus3D

(   h :HANDLE;   VAR  pX :REAL;   VAR  pY :REAL;   VAR  pZ :REAL ) ;

Description:

Procedure GetLocus3D returns the coordinates of the referenced 3D locus object.

Parameters:

h	Handle to 3D locus.
p	Returns 3D coordinates of locus.

Declaration:

PROCEDURE   GetPolyPt3D

(   objectHd :HANDLE;     index :INTEGER;   VAR  pX :REAL;   VAR  pY :REAL;   VAR  pZ :REAL ) ;

Description:

Procedure GetPolyPt3D returns the coordinates of the specified vertex of the referenced mesh, 3D polygon, or NURBS curve object.

Error checking for valid index values must be provided by the programmer.

Parameters:

objectHd	Handle to 3D mesh or polygon.
index	Index of vertex (range of 0 to n-1).
p	Returns 3D coordinates of vertex.

Example:

for i := 0 to (GetVertNum(thePoly) - 1) do
begin
	GetPolyPt3D(thePoly, i, vertX, vertY, vertZ);
end;

Declaration:

FUNCTION   HExtrude

(   objectH :HANDLE;     bottom :REAL;     top :REAL ) :HANDLE ;

Description:

Creates an extrude object from the specified object.

Parameters:

objectH	The profile to be extruded.
bottom	The z height of the bottom of the extrude.
top	The z height of the top of the extrude.

Result:

A handle to the newly created extrude object.

Declaration:

PROCEDURE   Locus3D

(   pX :REAL;     pY :REAL;     pZ :REAL ) ;

Description:

Procedure Locus3D creates a new 3D locus in the document at the specified 3D coordinate location.

Parameters:

p	3D coordinates of new locus.

Declaration:

FUNCTION   MeshToGroup

( meshObj:HANDLE ) :HANDLE ;

Description:

Converts meshObj to a group of 3D polygons.

Parameters:

meshObj

Handle to a mesh object

Result:

Returns a handle containing 3D polygons.

See Also:

GroupToMesh

Declaration:

FUNCTION   Moments3D

(   object :HANDLE;   VAR  lxx :REAL;   VAR  lyy :REAL;   VAR  lzz :REAL ) :BOOLEAN ;

Description:

Returns the moments of inertia of a 3D object about the x, y, and z axes of a point at the center of gravity of the object.

Parameters:

object	The object for which to find the 3D moments.
lxx	The moment of inertia relative to the x-axis passing through the center of mass of object
lyy	The moment of inertia relative to the y-axis passing through the center of mass of object
lzz	The moment of inertia relative to the z-axis passing through the center of mass of object

Result:

Returns true if the function succeeded.

Declaration:

PROCEDURE   Poly3D

(   p :REAL ) ;

Description:

Procedure Poly3D creates a three dimensional polygon in a Vectorworks document. The vertices of the polygon are specified by a list of parameters x1, y1, z1 through xn, yn, and zn, which specify the coordinate locations of each vertex.

Example:

Poly3D(1,1,0,1.5,1.5,1,2.5,1.5,1,);

Declaration:

FUNCTION   Products3D

(   object :HANDLE;   VAR  lxy :REAL;   VAR  lyz :REAL;   VAR  lzx :REAL ) :BOOLEAN ;

Description:

Returns the products of inertia of a 3D object for the xy, yz, and zx planes passing through a point at the center of gravity of the object.

Parameters:

object	The object from which to calculate the Products
lxy	Theh product of inertia with respect to the YZ and XZ planes passing through the center of mass of object.
lyz	Theh product of inertia with respect to the XZ and XY planes passing through the center of mass of object.
lzx	Theh product of inertia with respect to the XY and YZ planes passing through the center of mass of object.

Result:

Returns true if the function succeeds.

Declaration:

PROCEDURE   Set3DInfo

(   h :HANDLE;     heightDistance :REAL;     widthDistance :REAL;     depthDistance :REAL ) ;

Description:

Procedure Set3DInfo sets the height, width and depth dimensions of the referenced object.

Parameters:

h	Handle to 3D object.
heightDistance	New height of object.
widthDistance	New width of object.
depthDistance	New depth of object.

Declaration:

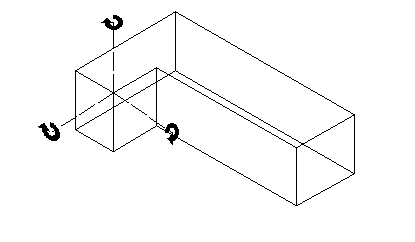

PROCEDURE   Set3DRot

(   h :HANDLE;     xAngle :REAL;     yAngle :REAL;     zAngle :REAL;     xDistance :REAL;     yDistance :REAL;     zDistance :REAL ) ;

Description:

Procedure Set3DRot rotates the referenced 3D object about a specified 3D point. It works with the following 3D objects: extrude, multiple extrude, sweep, mesh, 3D polygon, solid, CSG solid, group, symbol, plug-in object, NURBS curve, NURBS surface.

The difference between Set3DRot and SetRot3D is that Set3DRot adds the specified rotation to the existing rotation of the object, whereas SetRot3D does not consider the existing rotation, and merely makes the object rotation match the specified values.

Parameters:

h	Handle to 3D object.
xAngle	X axis rotation angle.
yAngle	Y axis rotation angle.
zAngle	Z axis rotation angle.
xDistance	X coordinate of center of rotation.
yDistance	Y coordinate of center of rotation.
zDistance	Z coordinate of center of rotation.

Example:

Set3DRot(hd,10d,30d,23d45',3,3,2);

See Also:

SetRot3D

Declaration:

PROCEDURE   SetPolyPt3D

(   objectHd :HANDLE;     index :INTEGER;     pX :REAL;     pY :REAL;     zValue :REAL ) ;

Description:

Procedure SetPolyPt3D sets the position of the specified vertex in the referenced 3D object.

Parameters:

objectHd	Handle to mesh or 3D poly object.
index	Index of vertex point.
p	New X-Y coordinates of vertex.
zValue	New elevation of vertex.

Example:

SetPolyPt3D(objectHandle,3,2.5",3",8");

Declaration:

PROCEDURE   SetRot3D

(   h :HANDLE;     xAngle :REAL;     yAngle :REAL;     zAngle :REAL;     xDistance :REAL;     yDistance :REAL;     zDistance :REAL ) ;

Description:

Procedure SetRot3D sets the rotation (in degrees) of the referenced object to the specified rotations and center. This procedure works on the following 3D objects: extrudes, multiple extrudes, and sweeps.

The difference between Set3DRot and SetRot3D is that Set3DRot adds the specified rotation to the existing rotation of the object, whereas SetRot3D does not consider the existing rotation, and merely makes the object rotation match the specified values.

Parameters:

h	Handle to 3D object.
xAngle	New X rotation angle.
yAngle	New Y rotation angle.
zAngle	New Z rotation angle.
xDistance	X coordinate of rotation center.
yDistance	Y coordinate of rotation center.
zDistance	Z coordinate of rotation center.

See Also:

Set3DRot
