Declaration:

PROCEDURE   AddButton

(   buttonStr :STRING;     itemID :INTEGER;     buttonType :INTEGER;     x1 :INTEGER;     y1 :INTEGER;     x2 :INTEGER;     y2 :INTEGER ) ;

Description:

Defines the standard button types (such as the OK or Cancel buttons, check boxes, radio buttons) within a custom dialog definition.

In addition to the regular button styles, there are also two "auto" button styles. These styles(check box and radio button) automatically handle user selection- deselection, and can be activated or deactivated by calling SetItemEnable.

To create a default button, assign the button an item ID of 1.

Table - Custom Dialog Button Styles

Button Style	Style Constant
Standard Button	1
Check Box	2
Radio Button	3
Auto Check Box	4
Auto Radio Button	5

Parameters:

buttonStr	Descriptive text for dialog button.
itemID	Unique itemID for the dialog button, in a range of 1-50.
buttonType	Style of dialog button control.
x1	Top left X coordinate of button bounding box.
y1	Top left Y coordinate of button bounding box.
x2	Bottom right X coordinate of button bounding box.
y2	Bottom right Y coordinate of button bounding box.

Example:

{creates a check box }
AddButton('Use Sound',4,3,25,60,125,80);

{creates a push button that is the default button of the dialog }
AddButton('OK',1,1,25,60,125,80);

See Also:

SetItemEnable

Declaration:

PROCEDURE   AddChoiceItem

(   choiceTitle :STRING;     itemID :INTEGER;     choiceType :INTEGER;     x1 :INTEGER;     y1 :INTEGER;     x2 :INTEGER;     y2 :INTEGER ) ;

Description:

Adds a choice item control to a custom dialog definition. A choice item allows the user to select an item from multiple list options. Options for the itemID parameter are: 1) pop-up, 2) multi-select list box, and 3) single-select list box.

Combo Box-Popup Default State

Combo Box-Popup Open State

Parameters:

choiceTitle	Descriptive text string for the choice item.
itemID	Unique item ID for the choice item control, in a range of 1-50.
choiceType	The type (style) of choice item control to be displayed.
x1	Top left X coordinate of the control bounding box.
y1	Top left Y coordinate of the control bounding box.
x2	Bottom right X coordinate of control bounding box.
y2	Bottom right Y coordinate of control bounding box.

Example:

AddChoiceItem('Topping Type',4,1,25,50,150,115);

See Also:

InsertChoice

Declaration:

PROCEDURE   AddField

(   fieldStr :STRING;     itemID :INTEGER;     fieldType :INTEGER;     x1 :INTEGER;     y1 :INTEGER;     x2 :INTEGER;     y2 :INTEGER ) ;

Description:

Defines a static or editable text field within the custom dialog definition. Note: single line edit fields should be 16 pixels high.

Note: Static and editiable text fields can be activated or deactivated using SetItemEnable().

Table - Field Types

Button Style	Style Constant
Static Text Field	1
Editable Text Field	2

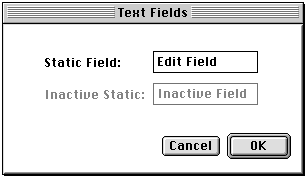

Text Field Types

Parameters:

fieldStr	The descriptive text for the field item.
itemID	Unique item ID for the dialog field, in a range of 1-50.
fieldType	The type of field item to be displayed.
x1	Top left X coordinate of field item bounding box.
y1	Top left Y coordinate of field item bounding box.
x2	Bottom right X coordinate of field item bounding box
y2	Bottom right Y coordinate of field item bounding box.

Example:

AddField('Enter number:',4,1,35,64,115,80);

Declaration:

PROCEDURE   AddGroupBox

(   s :STRING;     item :INTEGER;     left :INTEGER;     top :INTEGER;     right :INTEGER;     bottom :INTEGER ) ;

Description:

Adds a group box to a custom dialog.

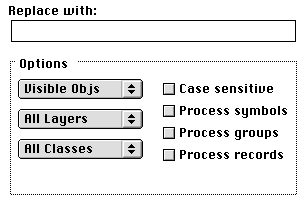

Group Box Dialog Control

Parameters:

s	Group box title string.
item	Dialog item ID value.
left	Top left X coordinate of group box bounds in dialog.
top	Top left Y coordinate of group box bounds in dialog.
right	Bottom right X coordinate of group box bounds in dialog.
bottom	Bottom right Y coordinate of group box bounds in dialog.

Example:

AddField('Find:',3,1,16,10,95,36);
AddField('',4,2,20,30,305,46);
AddField('Replace with:',5,1,16,59,113,75);
AddField('',6,2,20,80,305,96);
AddGroupBox('Options',7,20,110,305,250);
AddChoiceItem('Text Options',8,1,27,135,152,145);
AddChoiceItem('Layer Options',9,1,27,165,152,175);

Declaration:

PROCEDURE   AddHelpItem

(   itemID :INTEGER;     x1 :INTEGER;     y1 :INTEGER;     x2 :INTEGER;     y2 :INTEGER ) ;

Description:

Adds a help item to a custom dialog layout.

Parameters:

itemID	The id of the help control item.
x1	X coordinate of top left corner of control.
y1	Y coordinate of top left corner of control.
x2	X coordinate of bottom right corner of control.
y2	Y coordinate of bottom right corner of control.

Declaration:

PROCEDURE   BeginDialog

(   dialogID :INTEGER;     dialogType :INTEGER;     x1 :INTEGER;     y1 :INTEGER;     x2 :INTEGER;     y2 :INTEGER ) ;

Description:

Initiates the custom dialog definition process. All VectorScript calls made between the BeginDialog and EndDialog will be used to construct a custom dialog.

Parameters:

dialogID	Unique identifier ID for dialog(in a range of 1-32).
dialogType	Dialog style(always pass 1 for this parameter).
x1	Top left X coordinate of custom dialog window.
y1	Top left Y coordinate of custom dialog window.
x2	Bottom right X coordinate of custom dialog window.
y2	Bottom right Y coordinate of custom dialog window.

Example:

BeginDialog(1,1,TLeft,100,BRight,SCH);

Declaration:

PROCEDURE   ClrDialog

;

Description:

Closes the frontmost displayed custom dialog..

Declaration:

PROCEDURE   DialogEvent

( VAR item:INTEGER ) ;

Description:

Monitors user activity within a dialog; when an item is selected, the numeric identifier of the item is returned.

Parameters:

item	Returns item selected in dialog event.

Example:

REPEAT
  DialogEvent(Item);

  CASE Item OF
  {- OK button case -}
  1:Done:=TRUE;
  {- Cancel button case -}
  2:Stop:=TRUE;
  OTHERWISE SysBeep;
  END;
UNTIL Done;

Declaration:

PROCEDURE   DrawDialog

;

Description:

Redraws the frontmost custom dialog.

Declaration:

PROCEDURE   EndDialog

;

Description:

Terminates the dialog definition process.

Declaration:

PROCEDURE   GetDialog

( dialogID:INTEGER ) ;

Description:

Displays the specified custom dialog and brings it to the front of the dialog order.

Note: This procedure should NOT be a part of the dialog definition.

Parameters:

dialogID

ID number of dialog to be displayed.

Example:

BEGIN
  Done:=False;
  Stop:=FALSE;

  GetDialog(1);
  SetTitle('Dessert Toppings');
  InsertChoice(4,0,'Basic');
  InsertChoice(4,1,'Deluxe');
  InsertChoice(4,2,'Mmm!Yummy!');

Declaration:

PROCEDURE   SetTitle

( theTitle:STRING ) ;

Description:

Sets the title of custom dialogs in VectorScript. The title will be displayed in the dialogs' title bar.

Parameters:

theTitle

Title string of dialog.

Example:

GetDialog(1);
SetTitle('Find-Replace Text');
InsertChoice(8,1,'Selected Text');
InsertChoice(8,2,'Selected Objs');
